YOKOGAWA 2094 Replacement 80x80mm Panel Meter with 2.5 Accuracy Class Analog Ammeter

Model Number : TP-80K

Brand Name : ymiho

Place of Origin : Wuxi, China

MOQ : 100

Price : $10.60-14.60 / piece

Accuracy Class : 2.5

Display Type : Analog Only

Supply Voltage : NULL

Dimensions : 80x80mm

Operating Temperature : 0-40℃

Measuring Range : 20A

Brand : YOKOGAWA

Type : industrial meter

Max current : 20A

Accuracy : 2.5

Needle : flattened/round needle

Case color : Black/translucence

Scale : Black character on white background

Case Material : ABS

Base Material : FR-ABS

OEM : yes

Packaging Details : carton packaging

Delivery Time : 15 work days

Contact Now

Replacement YOKOGAWA 2094 Panel Analog Ammeter
The TP-60K is a high-performance analog pointer ammeter designed as a direct replacement for the YOKOGAWA 2093 series. With a compact 60×60mm panel mounting size, this instrument delivers reliable current measurement for industrial applications requiring precise monitoring and operational safety. Adopting the magnetoelectric moving-coil principle, it ensures stable performance even in harsh working environments typical of welding and spark machining equipment.
Product Specifications
Current, Voltage & Frequency Meters
Type Model Suspension Type Operating Principle Accuracy DC Ranges AC Ranges Frequency Ranges
DC Ammeter/Voltmeter 2071-2073, 2074A-2076A, 2093A,2094A Taut Band Moving coil 2.5 (2076A,2086A:1.5) 10uA-30A 50uA-30A /
2081-2083, 2084A-2086A Pivot & jewel Moving coil 2.5 50uA-30A
2093A,2094A
AC Ammeter/Voltmeter 2081-2083, 2084A-2086A Taut Band Mean Rectifier 2.5 200uA-20mA 3-300V 40-50Hz-300-500Hz
2081-2083, 2084A-2086A Pivot & jewel Mean Rectifier 2.5
2093A,2094A
AC Moving Iron 2081-2083, 2084A-2086A Pivot & jewel Moving Iron 2.5 (2086A:1.5) 50mA-30A 10-600V 40-50Hz-300-500Hz
2093A,2094A
Frequency Meter 2074A-2076A, 2093A,2094A Taut Band Root mean square 2.5 (2086A:1.5) / 100-230V 40-50Hz-300-500Hz
2093A,2094A Pivot & jewel Root mean square 2.5 (2086A:1.5) / 100-230V 40-50Hz-300-500Hz
Needle Length Specifications
Model Flattened Needle (Black) Round Needle (Red)
2071,20812929
2072,20823434
2073,208347.547.5
2074A,2084A63.562
2075A,2085A80.579
2076A,2086A103101
2093A47.547.5
2094A63.562
Panel Size Specifications
Model Panel Size (mm)
2071,208142×50
2072,208246×55
2073,208356×67
2074A,2084A67×80
2075A,2085A83×100
2076A,2086A100×120
2093A60×60
2094A80×80

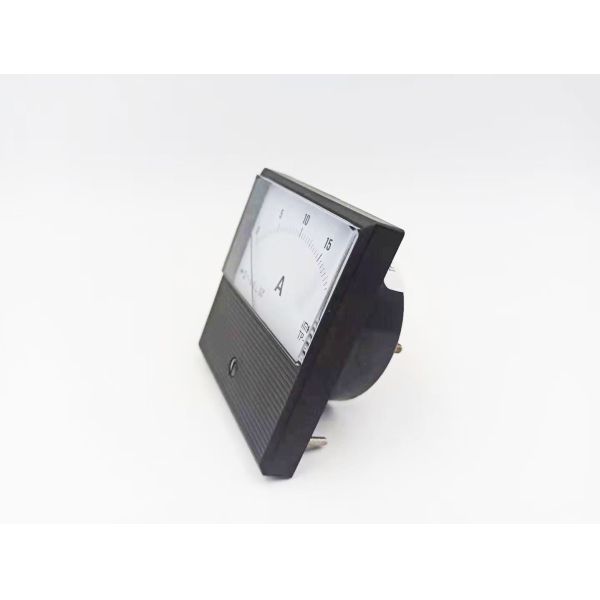

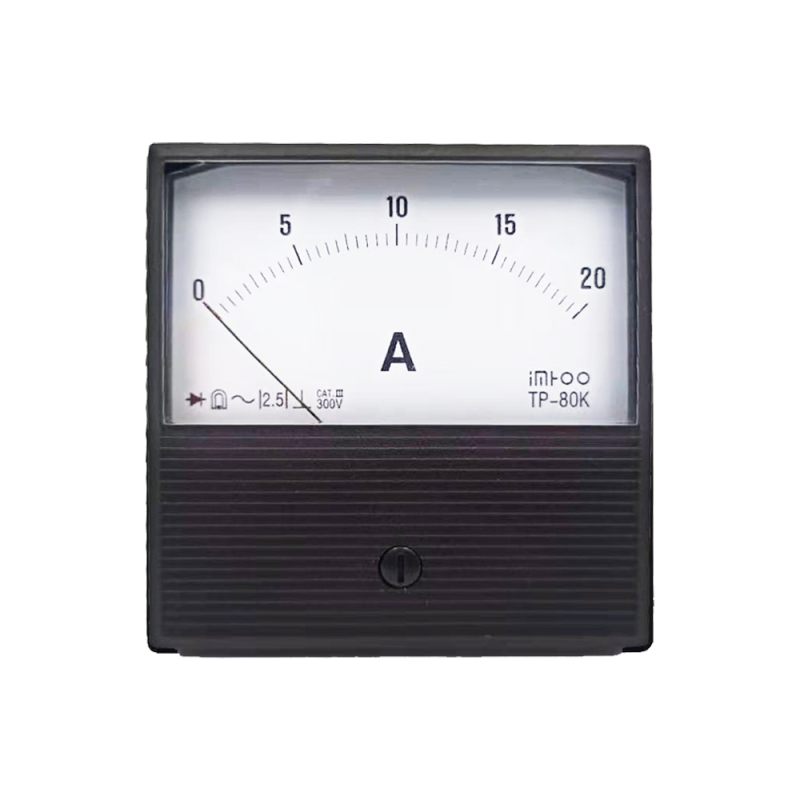

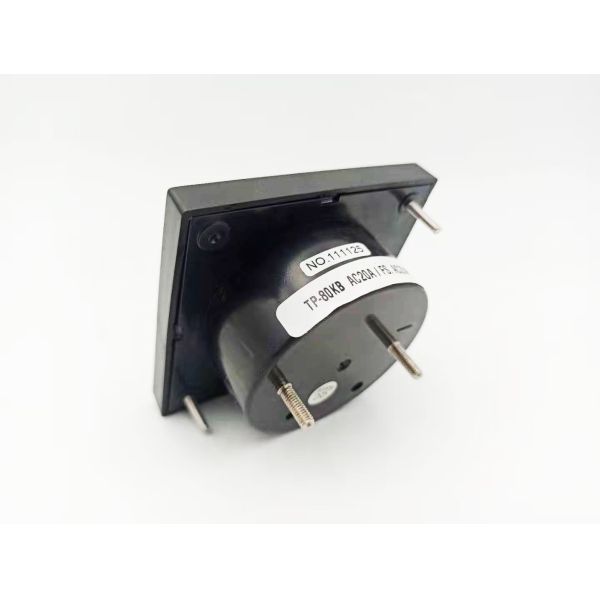

Product Images
YOKOGAWA 2094 Replacement 80x80mm Panel Meter with 2.5 Accuracy Class Analog Ammeter YOKOGAWA 2094 Replacement 80x80mm Panel Meter with 2.5 Accuracy Class Analog Ammeter YOKOGAWA 2094 Replacement 80x80mm Panel Meter with 2.5 Accuracy Class Analog Ammeter YOKOGAWA 2094 Replacement 80x80mm Panel Meter with 2.5 Accuracy Class Analog Ammeter
